Copper foil thickness of conventional PCB for power supply was about 70um(2oz). However High Current PCB using thick copper such as 105um-210um(3oz – 6oz) gain a lot of attention from growth of Industries which require high current capability such as “Industrial Robot”, “Electric Vehicle(EV)” and “Hybrid Car”. You can run high current like 30A-180A easily with Taiyo Kogyo’s High Current PCB.

Specifications

Copper foil thickness 105 / 140 / 175 / 210 / 240um (3 / 4 / 5 / 6 / 6.8oz)
Number of Layer 2 – 16 Layers (*Depending on copper foil thickness)
Board thickness 0.6 – 3.5mm
Others Copper Inlay available / IVH available / To combine with less than 2oz copper is available.
Certification UL

Examples of usage

  • Power supply for Industrial Equipment
  • Power supply for High Efficiency Server
  • High Output Inverter

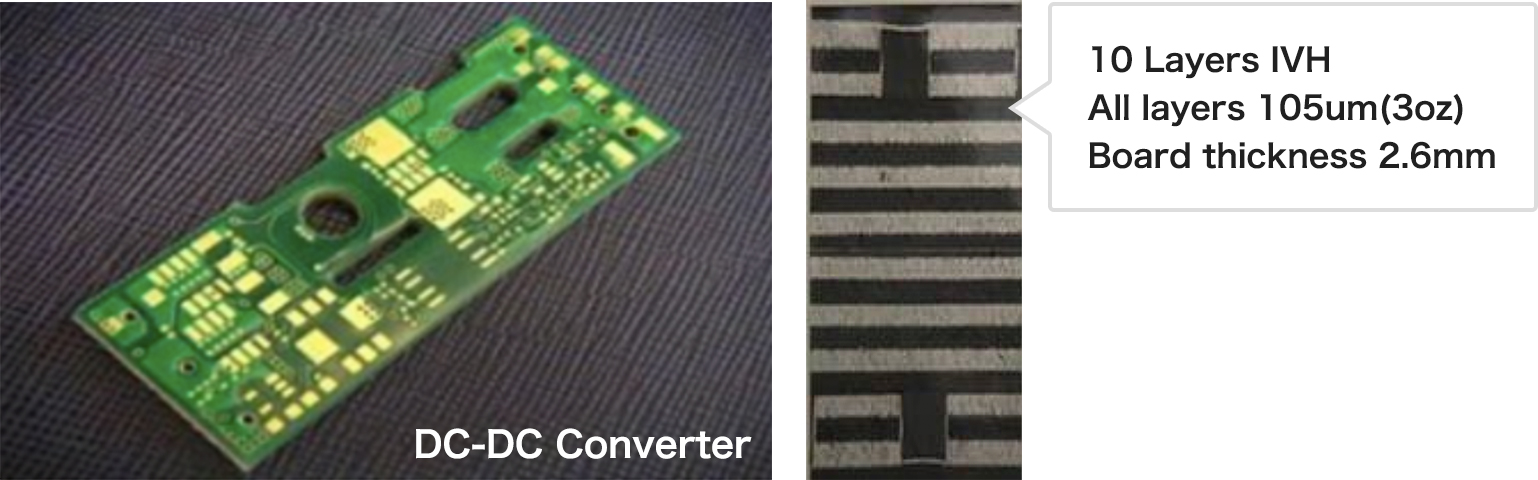

  • DC-DC Converter
  • High Power Motor Driver
  • Humanoid Robot
  • High Current Coil for Wireless Charging
  • A fuel Cell for Household Use
  • Lithium ion battery
  • High Current burn-in board
