Ultra Thick Copper PCB

All layers 500um(14.3oz) / 4 Layers

We developed “Ultra Thick Copper PCB” which copper foil thickness is 300um(8.6oz), 400um(11.4oz) and 500um(14.3oz) to meet customer’s demand for running even more high current utilizing our production know-how of High Current PCB. We launched“Ultra Thick Copper PCB” onto the market and have been mass producing it.

All layers 300um(8.6oz) / 6 Layers

Specifications

Copper foil thickness 300 / 400 / 500um (8.6 / 11.4 / 14.3oz)
Number of Layer 2 – 6 Layers (*Depending on copper foil thickness)
Board thickness 1.3 – 3.5mm
Others Copper Inlay available / IVH available / To combine with less than 6.8oz copper is available.
Certification UL

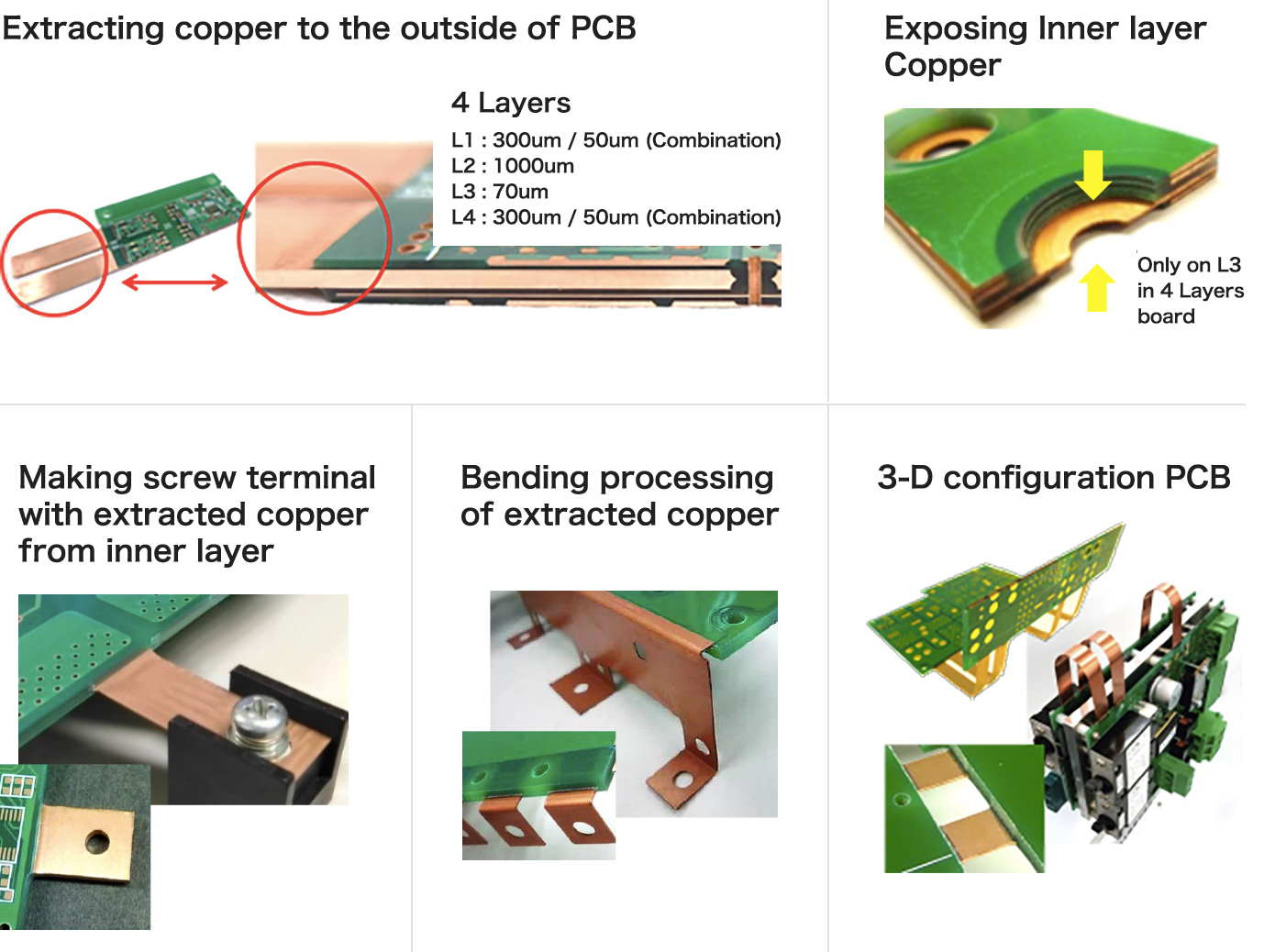

What thick copper can do? (Over 500um / 14.3oz)

Examples of usage

  • Industrial Robot
  • Automotive (EV, HEV etc.)
  • Inverter
  • Motor (Power generator)
  • Alternative Energy
  • Battery Management System(BMS)
  • Power Train
  • UPS
